You’ve got a product idea. You need a working prototype, fast. The wrong choice between 3D printing and CNC machining can cost you weeks and thousands of dollars before you ever reach a customer.
If you’re sourcing 3D Print Prototyping Denver CO, or evaluating machining shops, this guide cuts through the noise. You’ll know exactly which method fits your testing stage, your material requirements, and your budget, so you stop guessing and start building smarter.
What’s Actually at Stake When You Choose Wrong
Functional product testing isn’t just about having something that looks right. It’s about validating whether your part holds up under real stress, heat, pressure, torque, and repeated use.
Pick the wrong prototyping method, and your test data is worthless. You either get a part that fails for manufacturing reasons, not design reasons, or you spend 3x more than necessary to test a concept that could have been validated with a cheaper method first.
The decision comes down to four variables: material requirements, geometric complexity, volume, and test type.
3D Printing vs CNC: A Clear-Eyed Comparison

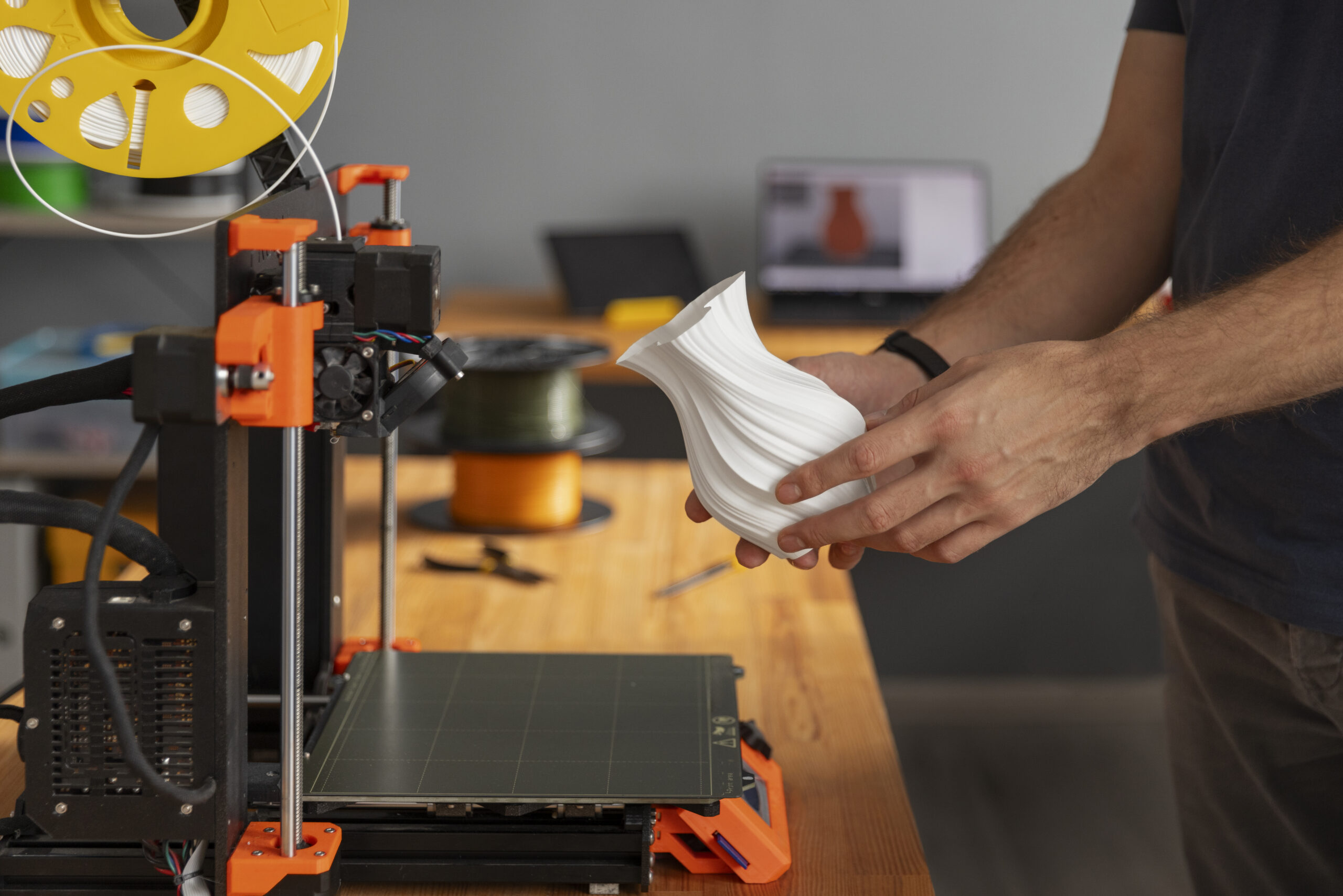

3D Printing (Additive Manufacturing)
3D printing builds parts layer by layer from materials like PLA, ABS, nylon, TPU, or resin. It’s fast, affordable for small runs, and handles complex geometries with ease.
Best for:
- Early-stage concept validation
- Complex internal channels, lattice structures, or organic shapes
- Low-volume runs (1–20 units)
- Rapid design iteration (multiple versions per week)
Limitations:
- Layer adhesion creates directional weakness (anisotropy)
- Surface finish often requires post-processing
- Material properties don’t always match injection-molded end parts
CNC Machining (Subtractive Manufacturing)
CNC machining cuts away material from a solid block, metal, plastic, or composite, using computer-controlled tools. Parts are dense, precise, and materially consistent.
Best for:
- Functional stress testing under real-world loads
- Parts requiring tight tolerances (±0.001″)
- Metal components: aluminum, steel, titanium, brass
- Later-stage validation before production tooling
Limitations:
- Higher cost per part, especially for complex geometry
- Longer lead times than 3D printing
- Design changes mean re-programming and re-setup fees
5 Actionable Steps to Choose the Right Method for Your Testing Phase
1. Define what “functional” means for your specific test. Are you testing form, fit, or function? Form and fit testing (Does it look right? Does it assemble?) can almost always use 3D printing. True functional testing, load-bearing, thermal, or fatigue testing, usually requires CNC-machined parts in the final material.
2. Map your test to a material. Write down the material your production part will use. If 3D printing can replicate it (nylon, ABS, TPU), start there. If your production part is aluminum 6061 or stainless steel, go straight to CNC for functional tests. Material substitution kills test validity.
3. Calculate your iteration cost, not just your unit cost. A 3D printed part might cost $40. A CNC part might cost $400. But if you’re on revision 1 of 8, 3D printing saves you $2,880 upfront. Use CNC when you’re confident in the design, not while you’re still discovering problems.
4. Check your tolerance requirements. If your part needs to mate with other components at tight tolerances, 3D printing often can’t deliver without significant post-processing. CNC holds ±0.001″ routinely. Loose-tolerance housings and covers can go additive; precision assemblies should go subtractive.
5. Run both methods in sequence for critical products. The most cost-effective strategy is a two-phase approach. Use 3D printing for early iteration and form/fit validation. Switch to CNC for final functional testing and pre-production sign-off. This hybrid approach reduces total prototyping cost by 30–50% on most product development cycles.
Real-World Examples
Example 1: Consumer Electronics Enclosure A startup developing a handheld barcode scanner ran eight design iterations using SLA resin printing at roughly $60 per part. Total iteration cost: $480. Once the design was locked, they machined two final units in ABS on a CNC for drop testing and button-force validation. Total functional test cost: $800. Sequential approach saved them an estimated $5,600 compared to CNC-machining every revision.
Example 2: Industrial Valve Component A fluid systems company needed a prototype valve body rated to 150 PSI. They attempted to validate using a 3D printed FDM nylon part. It failed at 40 PSI due to layer delamination, not because the design was wrong, but because the method was wrong. They remade the part in machined aluminum and it passed on the first test. The 3D print cost them three weeks and a false failure.
Example 3: Medical Device Bracket A med-tech firm used selective laser sintering (SLS) nylon printing to prototype a surgical instrument bracket. Because SLS produces near-isotropic parts, the functional testing data was valid enough to move directly to regulatory review. Right method, right stage, they saved four weeks versus CNC.
Common Mistakes to Avoid
Mistake 1: Using 3D printing for stress or fatigue tests without understanding anisotropy. FDM-printed parts are weakest between layers. If your test applies force in that direction, your failure is a manufacturing artifact, not a design flaw. Always orient 3D printed test parts so the load direction aligns with the strongest axis, or switch to CNC.
Mistake 2: Choosing a method based on cost alone. A $150 3D printed part that produces invalid test data costs more than a $600 CNC part that gives you a go/no-go answer in one run. Price is one input. Test validity is the output that matters.
Mistake 3: Skipping surface finish considerations. 3D printed parts have visible layer lines and micro-porosity. For fluid containment, sealing surfaces, or friction-critical interfaces, this matters. Don’t prototype a sealing groove in FDM and wonder why it leaks.
Mistake 4: Treating all 3D printing the same. FDM, SLA, SLS, and DMLS are completely different processes with different material properties. SLS nylon behaves very differently than FDM PLA. Match the process to the test, not just the category.
Mistake 5: Waiting too long to involve your manufacturer. Your production manufacturer knows what tolerances and surface finishes they can hold at scale. Get them involved at the prototyping stage. Their input can prevent you from designing a part that’s expensive or impossible to produce.
FAQ
Q: Can 3D printed parts be used for functional testing at all? Yes, with the right process and material. SLS nylon, DMLS metal printing, and some high-performance resins produce parts strong enough for meaningful functional tests. FDM is generally not suitable for structural or pressure testing.
Q: How much cheaper is 3D printing than CNC for prototyping? On a per-part basis, 3D printing is typically 50–80% cheaper for complex geometries. For simple geometries with few setups, the gap narrows. The real savings come from faster iteration, not just unit cost.
Q: When should I use CNC machining first, without 3D printing? When your design is already mature (fewer than two expected revisions), when the material is non-negotiable, or when you’re testing a precision-critical interface. Don’t iterate in CNC, validate in CNC.
Q: What materials can be 3D printed for serious functional testing? SLS nylon (PA12), DMLS aluminum and stainless steel, Markforged continuous carbon fiber, and high-temp resins (like Formlabs High Temp) are all viable for functional testing in the right application.
Q: How do I find a reliable prototyping partner? Look for shops that offer both additive and subtractive capabilities, or that have strong referral networks. Ask specifically about their experience with functional test parts, not just cosmetic prototypes. Request material certifications when testing in regulated industries.
Conclusion: Stop Picking One, Use Both Strategically
3D printing and CNC machining aren’t competitors. They’re sequential tools in a smart product development process. Use additive manufacturing to fail fast and iterate cheaply. Use CNC to validate definitively before you commit to production tooling.
The companies that prototype fastest aren’t choosing between these methods; they’re using both at the right stage.
Ready to build smarter? Map your next prototype to its test type before you call a vendor. Get quotes for both methods. Run the numbers. The right answer is almost always in the data, not the default.
